Side-scan sonar builds an acoustic image of the seabed from the echo of a grazing beam. It's useful for locating objects, narrowing down a search area and planning the dive, but it doesn't identify or measure reliably: the diver is still the one who confirms what's actually at each contact.
Searching for something underwater with no prior information is one of the most effective ways of wasting money and dive hours. With one metre of visibility and a search area of several hectares, a team of divers can spend days sweeping the bottom in a grid and find nothing. Side-scan sonar exists so that doesn't happen: it turns a blind search into a short list of points worth checking.
It's a tool the commercial diver runs into more and more often, not because they have to operate it, but because their working day gets built around what that tool has found. Understanding what a sonar does and doesn't see makes a big difference to how effectively the water time gets used.
How it works
The principle is acoustic and simple. A towed body — or a sensor mounted on a helmet or a vehicle — sends out sound pulses to both sides, in a fan that's very wide in the vertical plane and very narrow in the direction of travel. The sound travels out, hits the bottom and whatever's on it, and part of it comes back. The equipment measures how much energy returns and how long it takes, and builds a line from that. As the platform moves forward, successive lines stack up until they form a continuous image.
What matters is that the beam reaches the bottom at a grazing angle, not straight down. That geometry is the key to the whole method: it makes irregularities in the terrain and objects sticking up return a strong echo on their exposed face and leave a zone behind them that the sound doesn't reach. That zone with no return is the acoustic shadow, and it's the most informative part of the image.
The practical consequence is that a side-scan sonar doesn't measure depth directly and doesn't produce a model of the terrain. That's what other sensors are for. What it produces is a mosaic of reflectivity: where the bottom returns a lot — rock, metal, hard ground — and where it returns little — mud, fine sand, shadow.
Reading the image
Anyone seeing a side-scan record for the first time tends to read it as an aerial photo, and gets it wrong. There are three things worth being clear about.
The shadow says more than the contact
An object sticking up from the bottom produces a bright echo and, right behind it, an elongated shadow. The length of that shadow, combined with the sensor's height above the bottom and the lateral distance, lets you estimate how much the object rises off the seabed. An experienced interpreter looks at the shadow before the contact, because the shadow has shape: the profile of an anchor, a propeller, a pipe section or a box is easier to recognise from its dark silhouette than from its reflection.
There's a blind strip underneath
Right under the sensor's track, where the beam hits almost vertically, the geometry stops working and a strip with no useful information appears. That's why surveys are planned with overlapping lines: what's blind on one pass gets covered by the adjacent one. When someone hands over a record where the target falls right in the blind strip of a single line, the conclusion isn't that there's nothing there.
Position carries error
The contact that shows up on screen has a position attached to it that depends on the platform's positioning, the tow cable and the geometry at that moment. That error can run to several metres. For the diver this matters: it means the point they're given is the centre of a search circle, not an exact cross on the map. Planning the dive as if the coordinate were precise is the usual reason an apparently solved location ends up as a long search.
What it doesn't find
Being explicit about the limitations saves frustration and planning accidents.
Side-scan sonar doesn't penetrate sediment. A buried object, or one covered in mud, doesn't show up, and on active seabeds that happens often. It also doesn't tell apart objects lying flat on a bottom of similar reflectivity, because they don't produce shadow or contrast. Objects sitting behind a rise are in shadow and don't show up. And, above all, sonar doesn't identify: a contact with the right shape can just as easily be a block of concrete from some old structure.
None of this is a flaw in the equipment. It's the nature of the method, and it's exactly why someone still has to go down and look.
From contact to dive
A well-organised job follows a clear sequence. First the likely area is defined with the information available: account of what happened, currents, depth, witnesses. Then the survey is run with overlapping lines and the equipment set up for the size of object being sought, which drives the range and resolution chosen. The record is analysed and a list of contacts is produced, ranked by probability.
And then the diver's work begins. Each contact is checked using a search method suited to the environment: a circular search around an anchored point, a sweep along a reference line between two points, or a grid if the area allows it. In zero visibility all of that is done by touch, with the line as the only navigation system, which links straight back to the classic techniques of underwater navigation.
Once the object is located, the diver supplies what sonar can't: what it is, what condition it's in, how it's resting, whether there's any associated risk, and what it would take to recover or repair it. That confirmation is what turns an acoustic image into a decision. In salvage and refloatingwork, or in recovering an object dropped in a port, sonar narrows the problem down and the diver solves it.
Where sonar fits alongside the ROV
The reasonable question is why not just send a vehicle with a camera straight away. In clear, deep water, that's often the right call. But in the environments where most commercial diving happens — murky ports, estuaries, sites with dense structure, shallow water and current — the vehicle has its own difficulties: it snags, needs room to manoeuvre and depends on visibility that often isn't there.
The realistic split is the one you see on the job: sonar covers the ground and produces candidates; the remotely operated vehicle does the check when depth or risk calls for it and the environment allows it; and the diver goes in wherever something has to be touched, handled, measured by feel or worked among structure. They don't compete: they chain together.
What the diver needs to know
You don't need to be a hydrographer, but you do need to know how to read what you're given. A diver who understands the product asks the right questions before going in the water: what range the survey was run at, how much altitude the sensor kept above the bottom, how much overlap there is between lines, how much shadow the contact casts, and what position error to assume. With those answers, the briefing stops being a coordinate and becomes a search plan with a defined radius.
That combination of basic acoustic competence and the ability to do documented visual inspection is turning up more and more in tender specs. The sector's inspection qualifications already cover it, and companies that offer geophysical surveys alongside diving — identifiable in the company directory— place real value on a professional who can move between both sides of the process without needing an interpreter. For someone coming from the water, getting familiar with the sensors isn't a step away from the trade: it's no longer having to depend on someone else to explain where to search. And for anyone looking further ahead, it's one of the skills that opens the door to technical work in instalaciones offshore and to career paths such as remotely operated vehicle pilot.
Frequently asked questions
What exactly is side-scan sonar?
A sensor that sends acoustic pulses out to the sides at a very grazing angle to the bottom and records the returning echo. As the tow vehicle moves forward, successive lines are pieced together into a continuous image of the bottom. What you see isn't a photograph: it's a representation of how much acoustic energy each point returns, and which areas fall in the shadow of the terrain.
Can it replace the diver?
No. Sonar locates and narrows things down, but it doesn't identify with certainty or let you assess the condition of what it finds. A contact could be the object being searched for, a block of stone, construction debris or scrap. Someone has to go and check it, and in shallow, murky or congested areas that someone is usually a diver. What sonar does do is stop the diver wasting hours searching blind.
What doesn't a side-scan sonar detect?
Buried objects or ones partly covered in sediment, because the signal doesn't penetrate; small or flat objects resting on a bottom of similar reflectivity; and anything sitting in the acoustic shadow of a rise or in the blind strip right under the sensor. It also doesn't say what material a contact is made of, or what condition it's in.
What's the shadow in the image for?
It's the single most useful piece of information there is. Because the beam hits at a grazing angle, an object sticking up casts a zone with no return behind it, and the length of that shadow lets you estimate its height off the bottom. An experienced interpreter reads the shadow before the contact itself, because the shadow reveals shape and relief that the direct echo doesn't show.
Does the diver need to know how to interpret sonar?
They don't need to operate it, but they do need to know how to read the product they're handed. Understanding what a shadow means, why there's a blind strip under the track, how reliable a contact's position is, and what margin of error to assume changes the quality of the briefing and the efficiency of the search in the water completely.
When is sonar used, and when do you go straight into the water?
Sonar is used when the search area is large, the bottom is open, and visibility rules out sweeping it by eye; when there's a risk of undocumented hazardous objects; or when a record of the seabed's condition is needed. You go straight into the water when the area is small and known, when there's too much structure around to get a clean image, or when the object is within the structure itself.
Published 11 September 2026 · By Arthur More, professional saturation diver

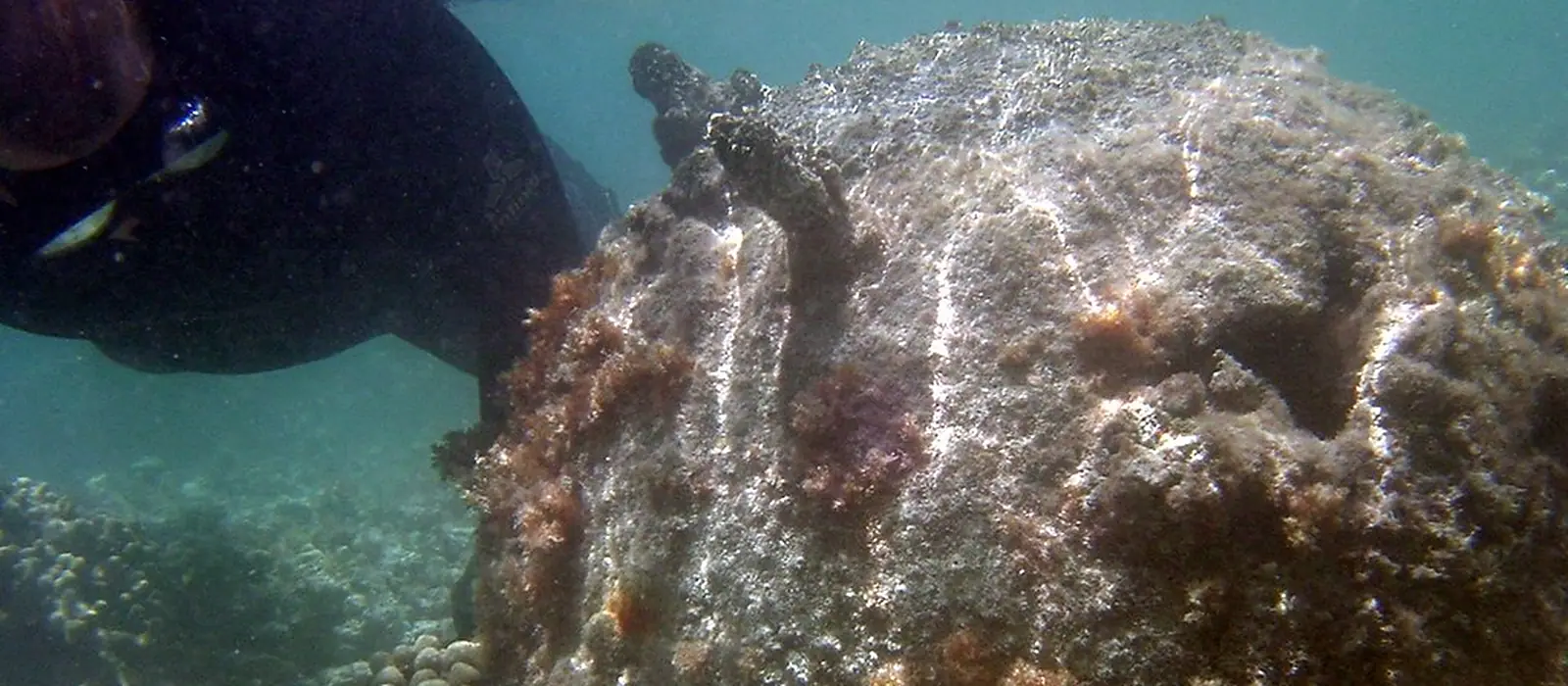

Photo: NOAA Photo Library · CC BY via Openverse
